Authentication

Jarvis uses three authentication patterns depending on who is communicating with whom.

1. Node Authentication

Pi Zero nodes authenticate to services using an API key:

Header: X-API-Key: {node_id}:{api_key}

The receiving service forwards these credentials to jarvis-auth for validation.

sequenceDiagram
    participant N as Node
    participant S as Service
    participant A as Auth Service

    N->>S: Request + X-API-Key: node_id:api_key
    S->>A: POST /internal/validate-node
    A-->>S: {valid: true, node_id, household_id}
    S-->>N: Response

Node Registration

Nodes are registered via the admin API during provisioning:

python utils/authorize_node.py \
  --cc-key <admin_key> \
  --household-id <uuid> \
  --room office \
  --name dev-mac \
  --update-config config.json

This generates a unique node_id and api_key pair, stores them in the auth database, and optionally writes them to the node's config file.

2. App-to-App Authentication

Backend services authenticate to each other using app credentials:

Headers:
  X-Jarvis-App-Id: jarvis-command-center
  X-Jarvis-App-Key: <shared_secret>

sequenceDiagram
    participant CC as Command Center
    participant A as Auth Service

    CC->>A: Request + X-Jarvis-App-Id + X-Jarvis-App-Key
    A->>A: Validate credentials
    A-->>CC: Response

App credentials are generated during ./jarvis init and stored in each service's .env file. Each service has its own unique app ID and key pair.

Which Services Use App-to-App Auth

Most inter-service communication uses this pattern:

  • Command Center to Auth, Whisper, TTS, Notifications
  • OCR Service to Auth
  • Recipes Server to Auth, OCR Service
  • Logs to Auth (for validating incoming log requests)
  • Config Service to Auth

3. User Authentication (JWT)

Human users (admin UI, mobile app) authenticate with JWT tokens:

Header: Authorization: Bearer <jwt_token>

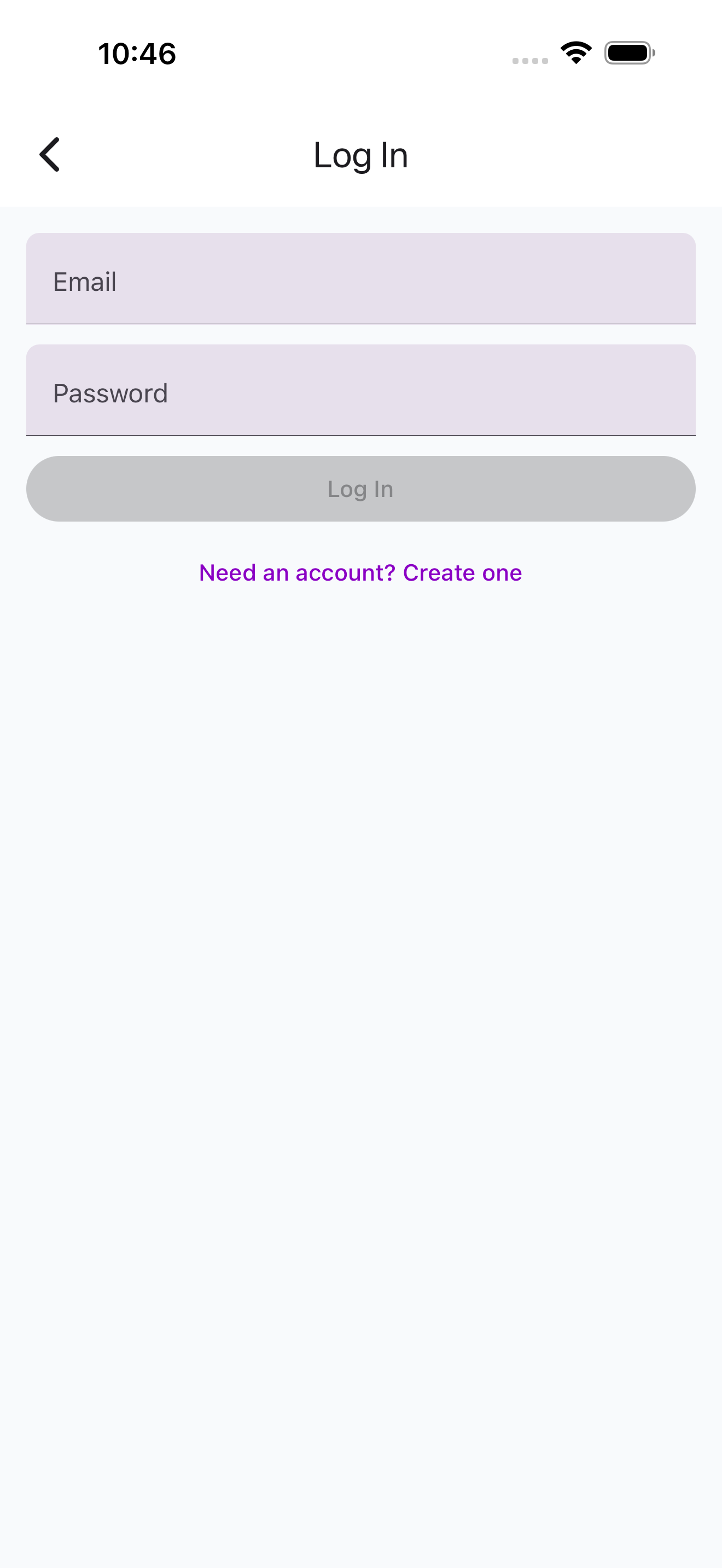

Login Flow

sequenceDiagram
    participant U as User
    participant A as Auth Service
    participant DB as PostgreSQL

    U->>A: POST /auth/login {email, password}
    A->>DB: Verify credentials
    A-->>U: {access_token, refresh_token}
    U->>A: GET /protected + Bearer access_token
    A-->>U: Response

Token Lifecycle

  • Access tokens are short-lived JWTs (configurable expiry)
  • Refresh tokens are long-lived, stored as hashed values in PostgreSQL
  • When an access token expires, the client uses the refresh token to obtain a new pair
  • Logout invalidates the refresh token server-side

Token Refresh

curl -X POST http://localhost:7701/auth/refresh \
  -d '{"refresh_token": "<refresh_token>"}'
# Returns: {access_token, refresh_token}

4. Admin Authentication

Administrative endpoints (service management, node registration) use a static admin key:

Header: X-Admin-Key: <admin_api_key>

The admin key is set via the ADMIN_API_KEY environment variable on each service that exposes admin endpoints.

Auth Flow Summary

Who What Pattern Headers
Node Service API Key X-API-Key: node_id:api_key
Service Service App-to-App X-Jarvis-App-Id + X-Jarvis-App-Key
User Service JWT Bearer Authorization: Bearer <token>
Admin Service Admin Key X-Admin-Key: <admin_api_key>

Security Notes

  • All secrets are stored in .env files which are gitignored
  • Passwords are hashed before storage (never stored in plaintext)
  • Refresh tokens are stored as hashed values in PostgreSQL
  • App-to-app credentials are unique per service pair
  • Node API keys are generated with cryptographic randomness during registration
