Nodes

The Nodes tab manages your Pi Zero voice nodes --- the physical devices that capture voice commands.

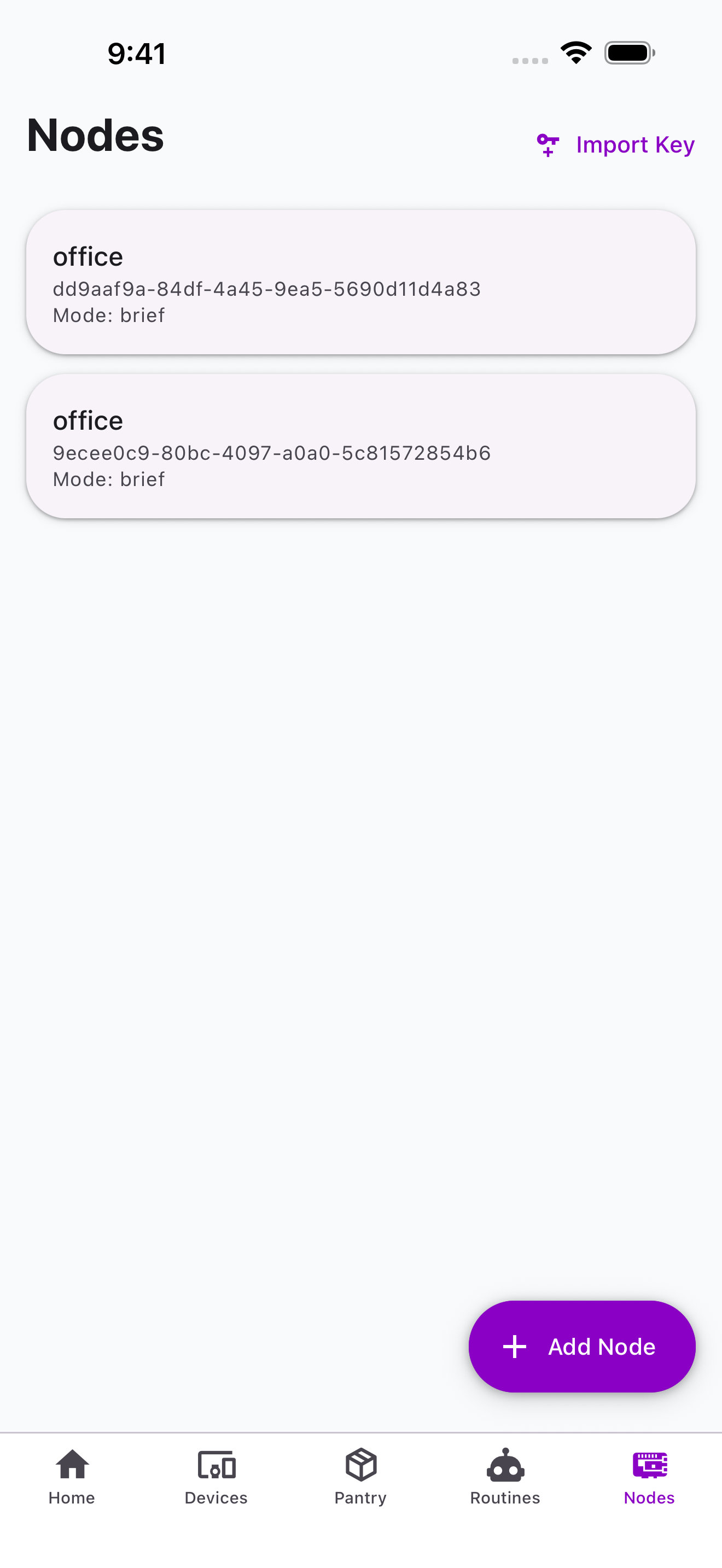

Node List

Each node card shows:

  • Room name
  • Node ID
  • Operating mode (brief/full)

Tap a node to view its detail screen with settings, installed commands, and status.

Adding a Node

Tap Add Node to start the provisioning flow:

  1. Scan --- The app scans for nearby Jarvis nodes broadcasting a WiFi access point
  2. Connect --- Connect to the node's AP network
  3. Configure --- Enter your home WiFi credentials
  4. Register --- The node registers with the command center

Tip

For development, you can use Import Key (top right) to manually pair a node by pasting its K2 encryption key.

K2 Encryption Key

Every node has a K2 key --- an AES-256 key generated during provisioning and stored on your device. K2 encrypts the settings sync channel between the mobile app and the node; the command center transports the encrypted blob but cannot read it.

Backing Up K2

After a successful provisioning, the Success screen offers a Back Up Encryption Key button. Two backup modes are available:

Mode Protection
Plain The raw key is encoded as a QR code. Fast, but anyone who scans it gains full access.
Password-protected The key is encrypted with Argon2id + AES-256-GCM before encoding. You must supply the same password on import.

Warning

Keep a backup of your K2 key. If you lose your device without a backup, you cannot restore your node's settings sync channel.

Importing K2

To import a key from a backup QR code, tap Import Key (key icon, top-right of the Nodes list):

  1. Scan the QR code with the camera.
  2. For a password-protected backup, enter the password when prompted --- the app decrypts the key locally using Argon2id + AES-256-GCM.
  3. On success, the node is re-paired to your device.

Software Updates

The node's detail screen shows an update control gated by the node's allow_updates consent flag (node-setup >= 0.1.137; see Update Policy):

  • Consent granted --- An Update button appears when a new version is available, plus a Remote updates enabled toggle to revoke consent at any time.
  • Consent refused --- The Update button is replaced by an Enable updates button. Tapping it shows a confirmation modal explaining that the node will be allowed to download and install releases; confirming flips the gate on.
  • Older nodes --- Nodes that predate the consent gate (node-setup < 0.1.137) show the previous Update button with no consent controls.

Consent changes are written end-to-end through the K2-encrypted config-push channel --- the command center transports ciphertext only and cannot forge or replay a consent flip.

Node Settings

From a node's detail screen you can:

  • View installed commands and their settings
  • Configure command secrets (API keys, credentials)
  • Trigger device discovery
  • View node status and connection info

Voice Settings

Each node exposes a Voice Settings screen where you can tune wake-word detection and response behaviour. Tap Save Changes to persist settings to the node.

Data Browser

Commands that store structured records (e.g. medication lists, shopping lists, reminders) expose a Data Browser accessible from the node's command list. The data browser supports listing, viewing, editing, deleting, and — for commands that opt in — adding records.

Adding a Record

When a command supports record creation, the record list shows a + floating action button (FAB). Tapping it opens an Add Record form pre-seeded with type-appropriate defaults.

  • Fields marked create_only (e.g. a medication's Visible to scope) appear editable on the add form but are read-only on the edit form — set them once at creation.
  • Ownership is always stamped server-side from your authenticated identity; the form never asks for an owner field.
  • Validation errors (e.g. "at least one dose time is required") are shown inline and the record is not saved until resolved.

Time Array Fields

For fields that hold a list of times (e.g. dose_times on a medication), the add and edit forms render individual time rows with a native time picker. Tap a time chip to adjust it; tap the × to remove a row; tap Add time to append a new one.

Command Authoring

To enable the + button for your own command, see Data Browser Protocol — specifically data_browser_supports_create and data_browser_create in the jarvis-command-sdk docs.
